CROPSCAN, Inc.

Data Logger Controller (DLC) & Accessories

Last update - 8/6/2009

DLC CONFIGURATIONS

The basic Data Logger Controller (DLC) supports 16 analog inputs, 2 pulse counters, 4 digital inputs and 4 digital outputs. It is available in 7 different data storage sizes. Numerous functions and capabilities are built-in (refer to the DLC Product She et for a complete description). Includes DLC User's Manual & Technical Reference. Full Description, Features and Specifications.

DLC64 .......... 64K, 5,461 data points
DLC128 ........ 128K, 16,384 data points
DLC160 ........ 160K, 21,845 data points
DLC256 ........ 256K, 38,229 data points
DLC288 ........ 288K, 43,690 data points
DLC384 ........ 384K, 60,074 data points
DLC512 ........ 512K, 81,920 data points

DLC EXPANSION FEATURE CARDS

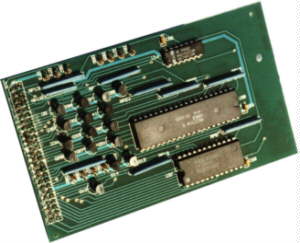

AIO

Additional I/O-Pulse Counters
Card plugs onto the main DLC circuit board.
It provides for:

3 additional pulse counters
8 additional digital inputs
16 additional digital outputs

PG

Programable Gain
Card plugs onto the main DLC circuit board.
Provides for additional gains of

10X, 100X, 1000X, and auto-gain-ranging.

CP

Calibration Plug
Required to calibrate the Programmable Gain card.

DLC ACCESSORIES

I/O Terminal Card

7" x 9" card with connectors for 16 analog inputs, 12 digital inputs, 20 digital outputs, 5 pulse counters, 16 analog expansion pods, and connectors for analog and digital I/O ribbon cables to the DLC. Each input or output connector has terminals for C hannel, +5V, 5VAC and Ground. Each analog expansion pod attached adds 16 more analog channels to a maximum of 256.

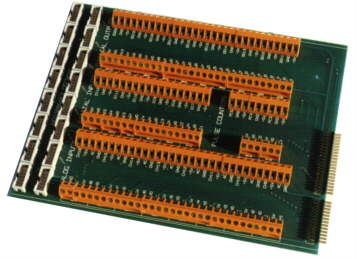

IO45

I/O Terminal Card with 45 degree terminal blocks.

Analog Expansion Pod

2.25" x 7" card with 16 analog connectors and individual +5V, 5VAC and Ground connectors. Up to 16 may be connected to the I/O Terminal Card (above).

AX

With 45 degree terminal block and a 1 foot ribbon cable (not shown).
Four mounting holes.
Will fit four per I/O Terminal Card Enclosure (below).

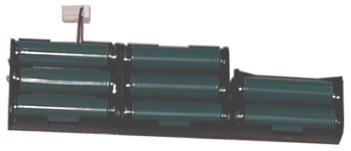

Internal Battery Pack

Internal battery holder which can use rechargeable and replaceable Nickel Metal Hydride or Nickel Cadmium type AA cells.

INMH

Internal Nickel Metal Hydride Battery Pack

8 Nickel Metal Hydride AA Cells
1500 Milli-Amp hour Capacity (operate complete MSR System for up to 9 hours)
Can replace with NiMH (9 hour capacity) or NiCAD cells (4.5 hour capacity)

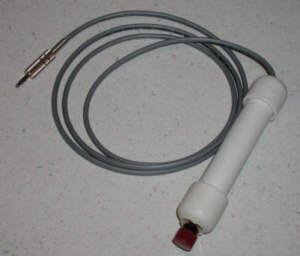

Manual Scan Switch

Used to manually initiate scans.

IOLE

I/O Terminal Card Enclosure

7.25" x 9.75" x 1.75"
Identical in style to DLC enclosure.

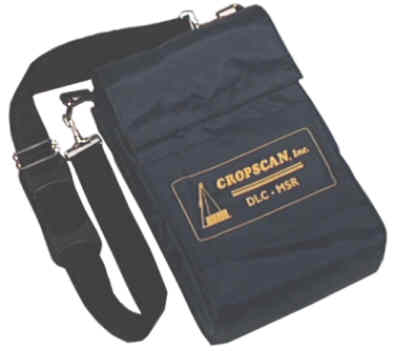

DLSCP

DLC Shoulder Pack
